Core Features

1. Compatible High-Efficiency Cells

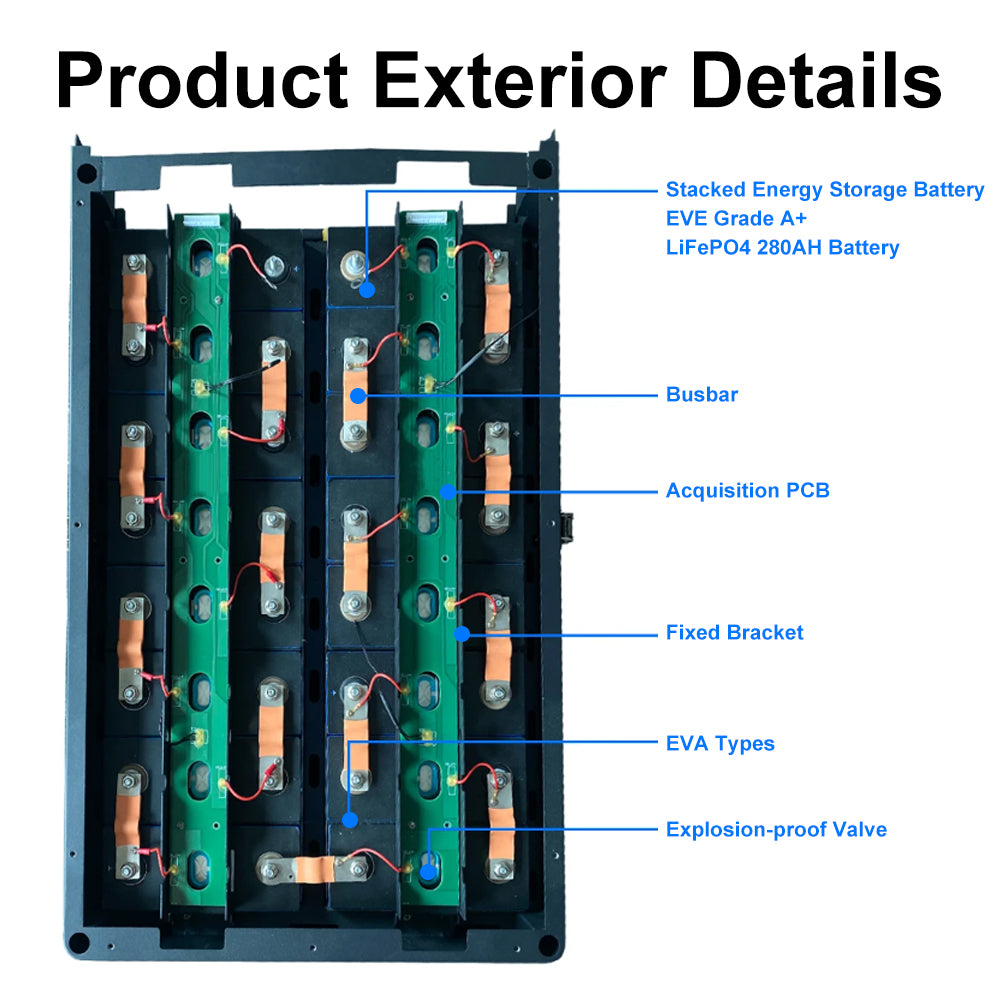

   • Designed for EVE 3.2V 280Ah and SEPLOS 3.2V 280Ah LiFePO₄ prismatic cells.
   • Grade A cell standards: Self-discharge rate ≤3%/month, initial internal resistance ≤0.23mΩ, cycle life ≥6,000 times (100%DOD, 25°C).

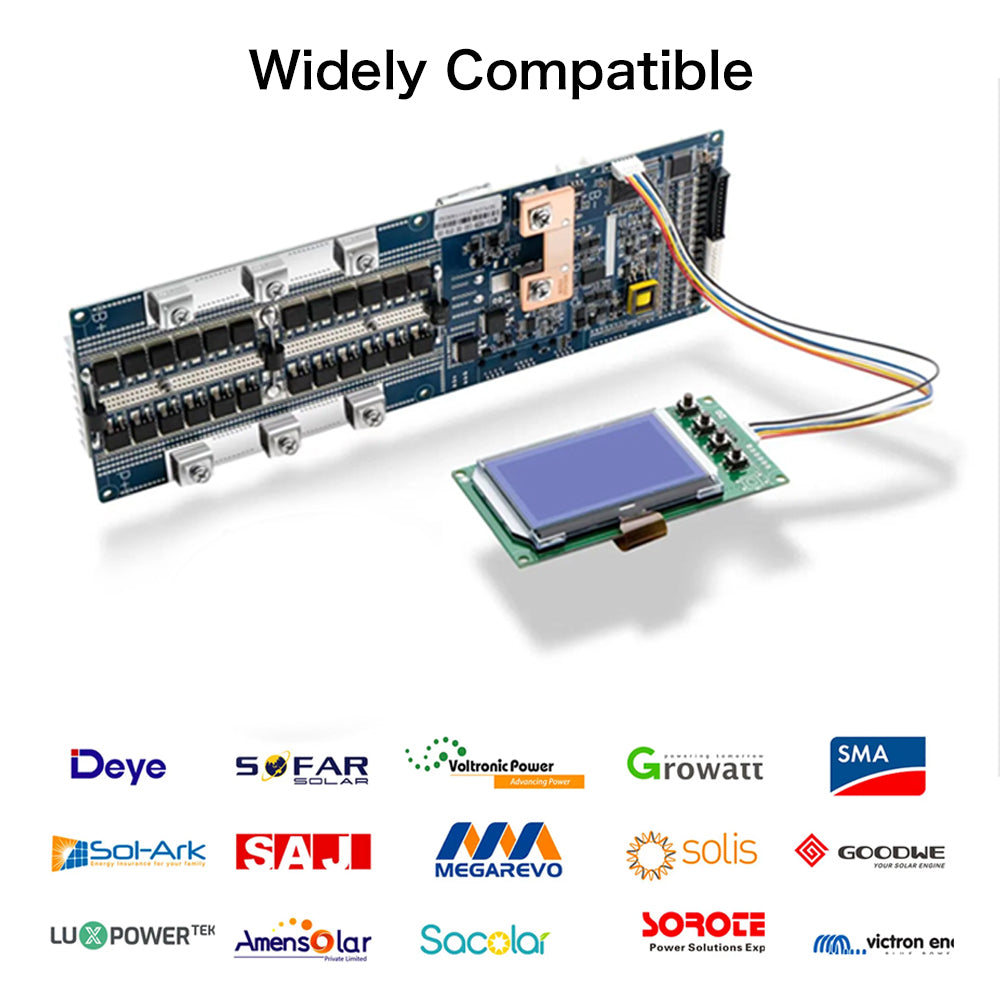

2. Intelligent BMS Management System
   • Multi-Protection: Overcharge (57.6V), over-discharge (41.6V), over-current (200A), and wide-temperature (-10°C~50°C for charge/discharge) protection.
   • Real-Time Monitoring: Connect to SEPLOS BATTERYMONITOR software via CAN/RS485 for real-time tracking of voltage, current, temperature, and SOC.
   • Multi-Protocol Compatibility: Pre-programmed for major inverter brands like Goodwe, Growatt, and Victron.
3. Modular & Scalable Design
   • Parallel Capability: Support up to 16 packs in parallel via 8 DIP switches for capacity/power expansion.
   • Stackable Structure: Allows stacking up to 4 units for space-efficient installation.
4. Safety-Centric Construction
   • Fireproof Insulation: Specialized plastic cell holders meet UL94 V-0 fireproof standards.
   • Polarity Protection: Anti-reverse connection design with 8.0mm locking power plugs to prevent misoperation.

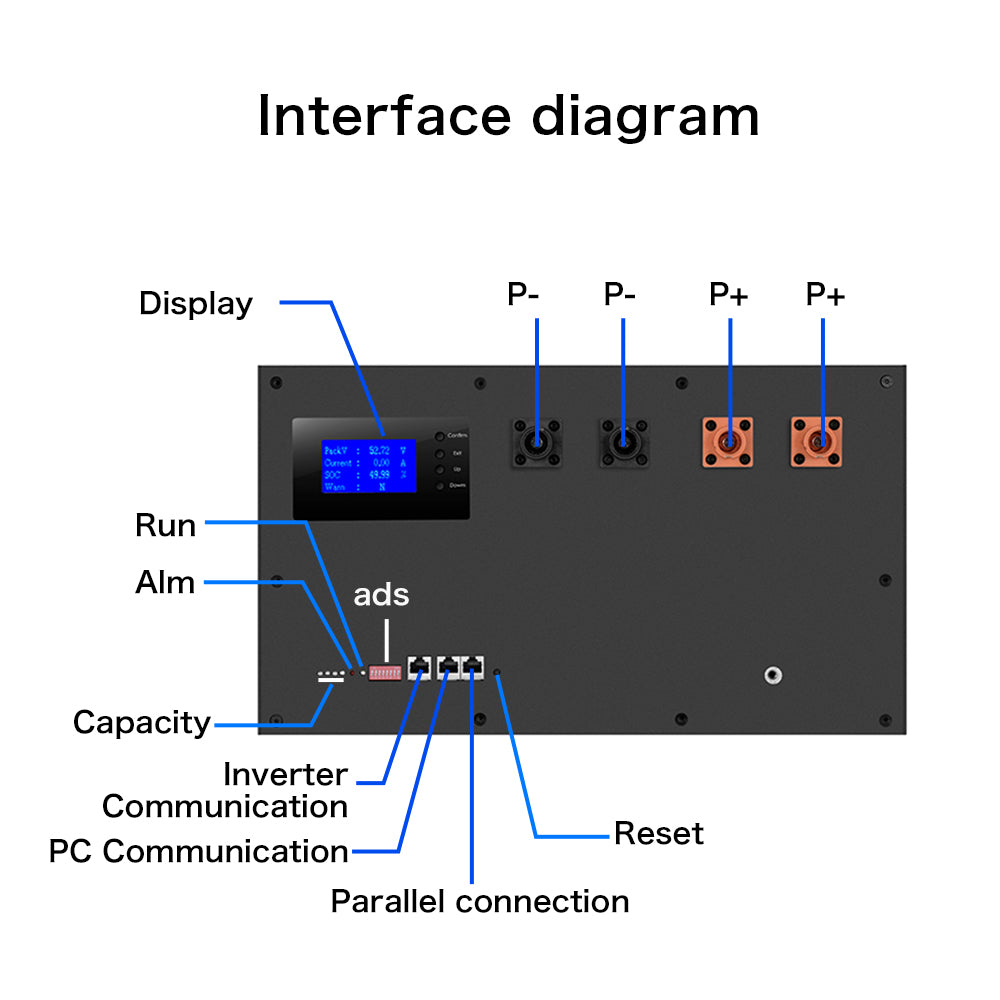

5. Plug-and-Play Interfaces
   • Communication Ports: RJ45 for RS485/CAN protocols, enabling master-slave communication and inverter integration.
   • Status Indicators: 4 LED lights show capacity (25% per LED), with red/green indicators for operation/alarm status.

Technical Specifications

Applications

1. Home Energy Storage Systems

• Pair with solar panels for "self-generation & storage," reducing electricity costs by 30%.
• Provides 48+ hours of emergency backup power, suitable for basements or garages.

2. Commercial & Industrial Backup Power

• Millisecond-level switching for data centers and hospitals, ensuring uninterrupted operation.
• Scalable to megawatt-level systems via parallel connection for 24/7 reliability.

3. Off-Grid Energy Systems

• Independent power supply for remote base stations and island microgrids, adapting to -20℃ extreme cold.
• Long cycle life minimizes maintenance costs for unattended environments.

4. RV & Mobile Energy Storage

• 51.2V high-voltage platform directly powers high-demand devices like air conditioners and induction cookers.
• Modular design allows flexible installation in vehicle spaces.

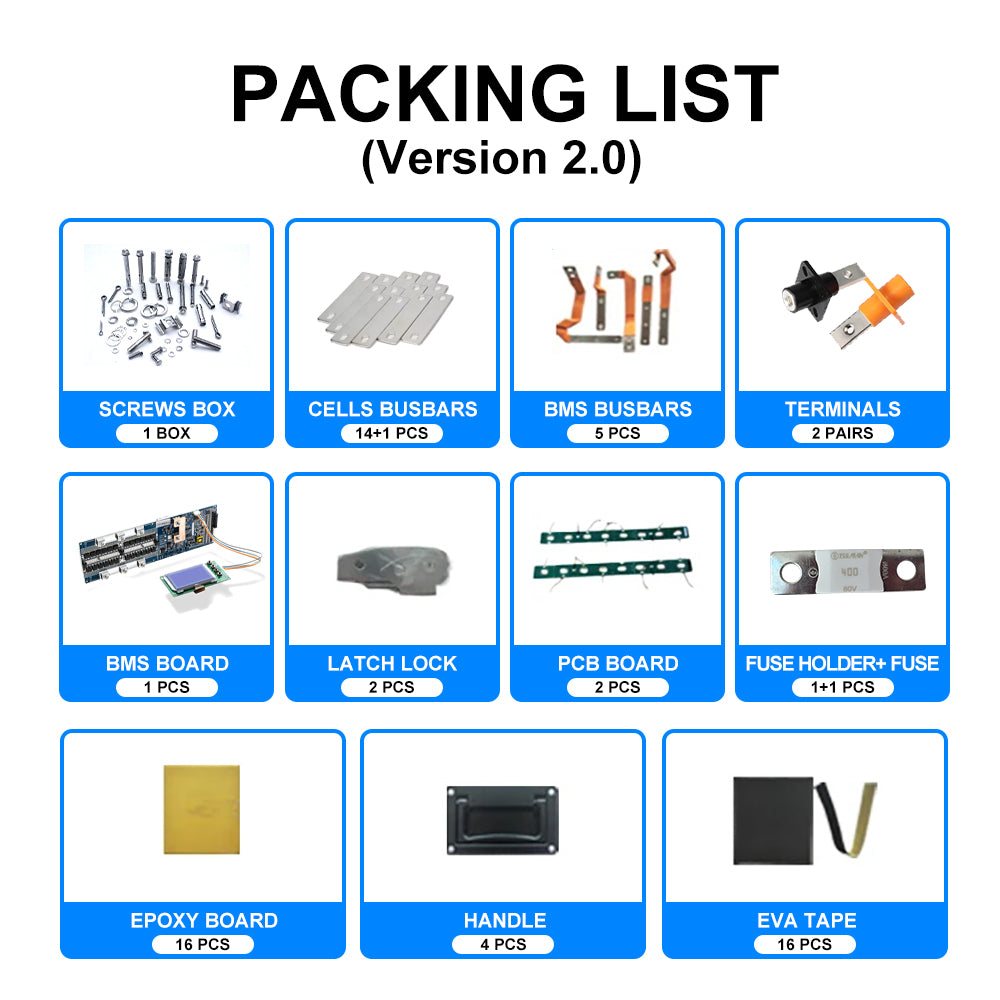

Package Contents

1. Core Components

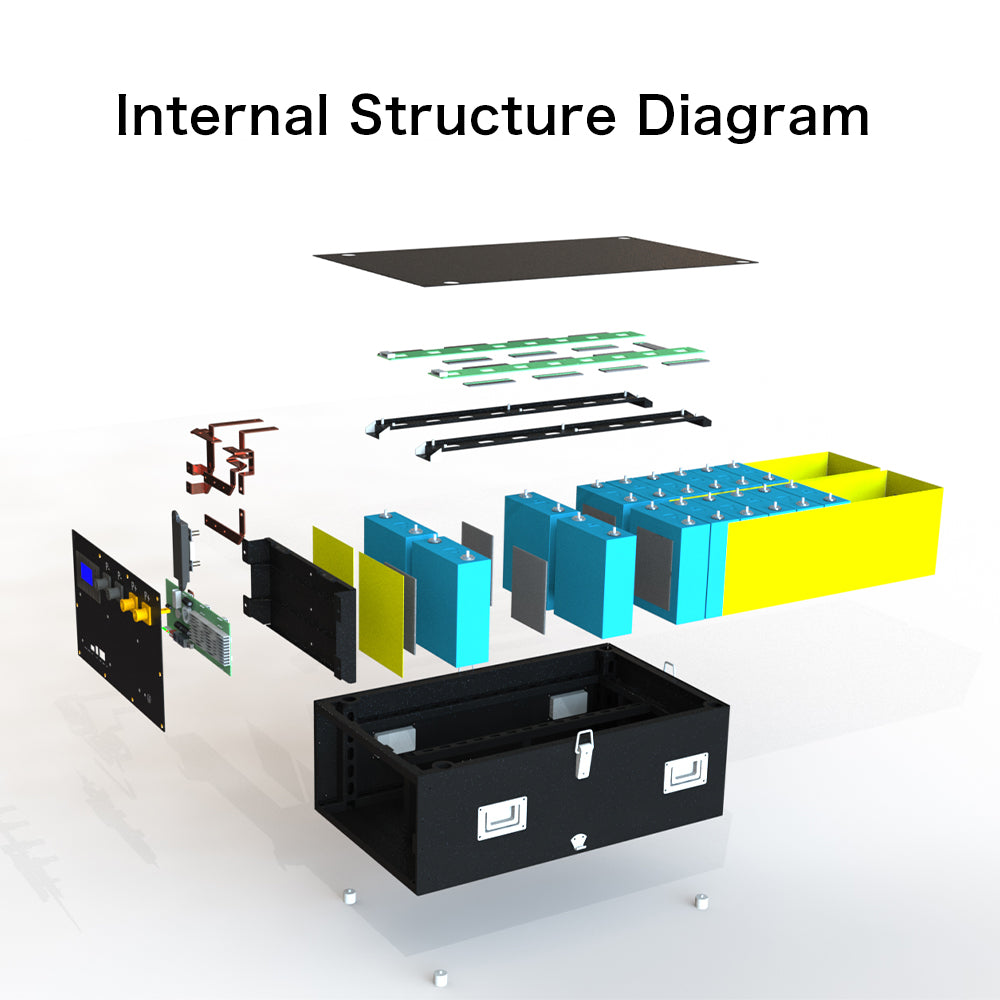

   • 1× Battery case (bottom shell, front panel, top bracket, front bracket, top cover)
   • 1× 16S 200A SEPLOS BMS
   • 1× 58V 400A fuse
   • 4× Handles

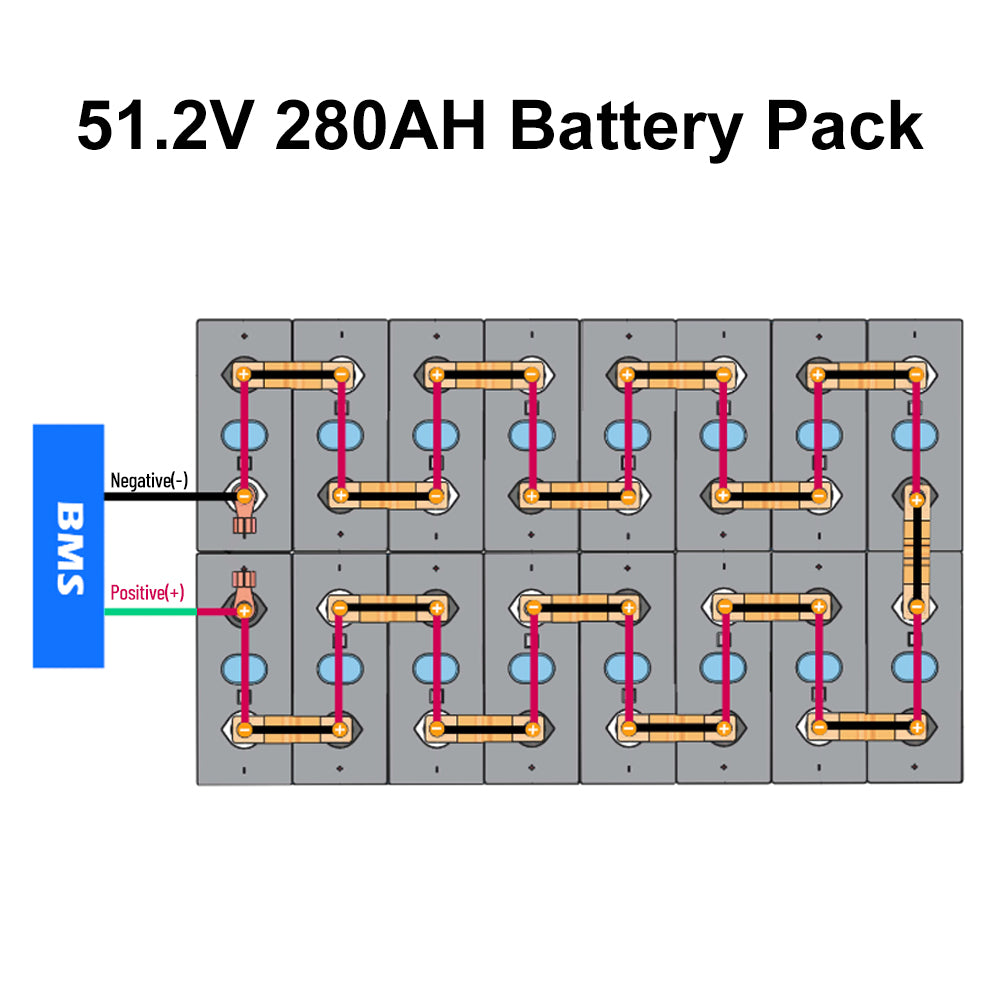

2. Electrical Parts
   • 6× Copper bus bars (for BMS connection)
   • 15× Aluminum bus bars (for cell connection)
   • 2× Power terminals (P+/P-)
   • 2× 8.0mm locking power plugs
3. Installation Accessories
   • 10× Epoxy insulation sheets
   • 26× EVA tapes
   • 1× PC film (for top cover)
   • Assorted screws (M3-M8) and washers
4. Tools & Documentation
   • Download link for SEPLOS BATTERYMONITOR software (Google Drive)
   • 1× Installation manual

Safety Precautions

• Operation: Disconnect all power before installation; avoid wet hands or terminal short-circuiting.
• Storage: Charge every 6 months for long-term storage, maintaining SOC ≥50%.
• Environment: Keep away from direct sunlight, flammable chemicals, and corrosive gases.
• Disposal: Follow local regulations; do not disassemble or incinerate.

Compatible Inverters

• CAN Protocol: Goodwe, Growatt, Victron, LUXPOWER, Sofar, DEYE
• RS485 Protocol: Voltronic, Phocos, SMA
• Setup Guide: Configure inverters to "Lithium Battery" mode with 57.6V charge voltage and 55V float voltage.
