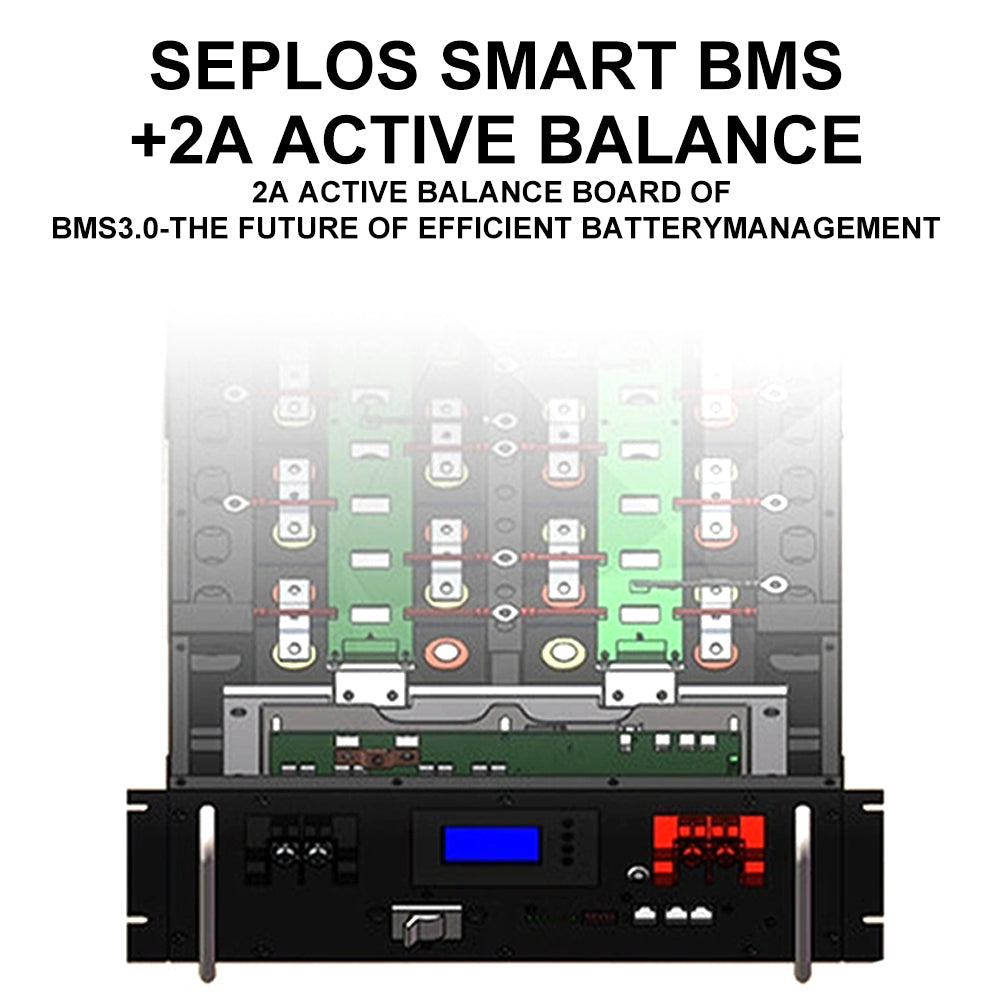

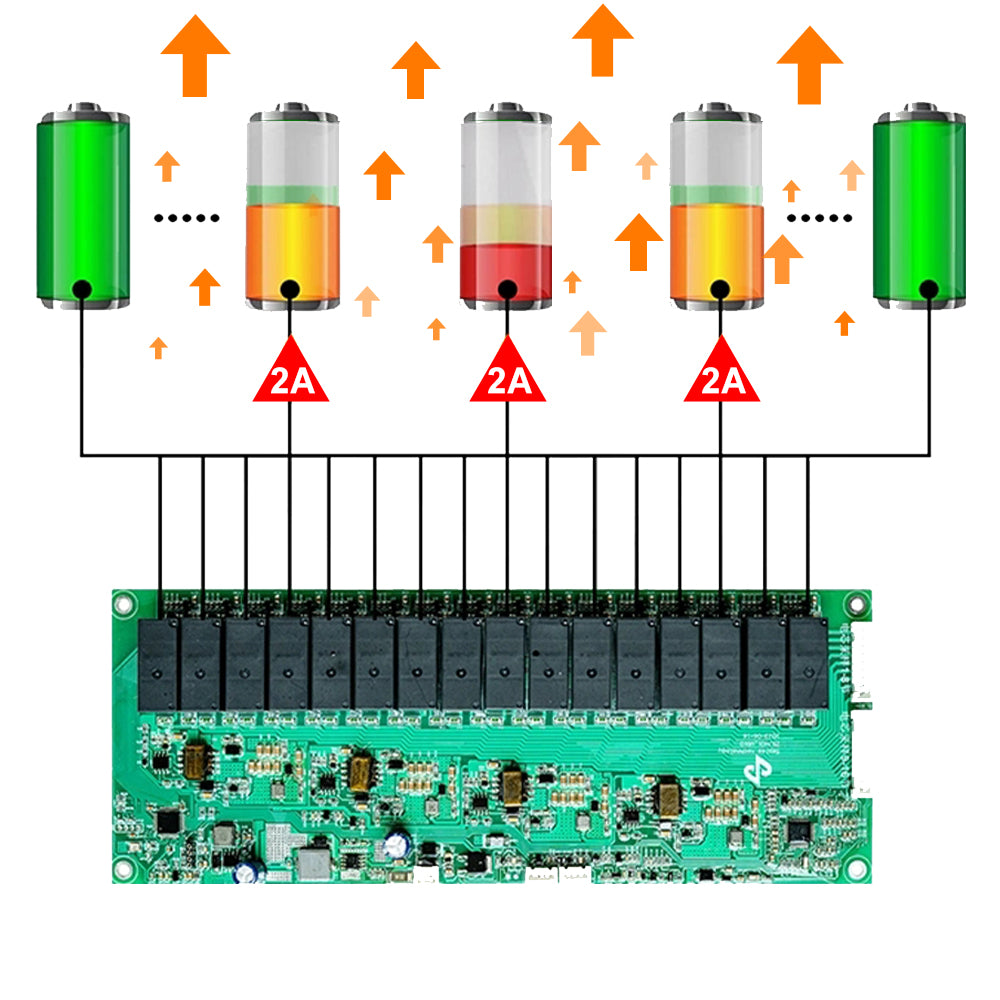

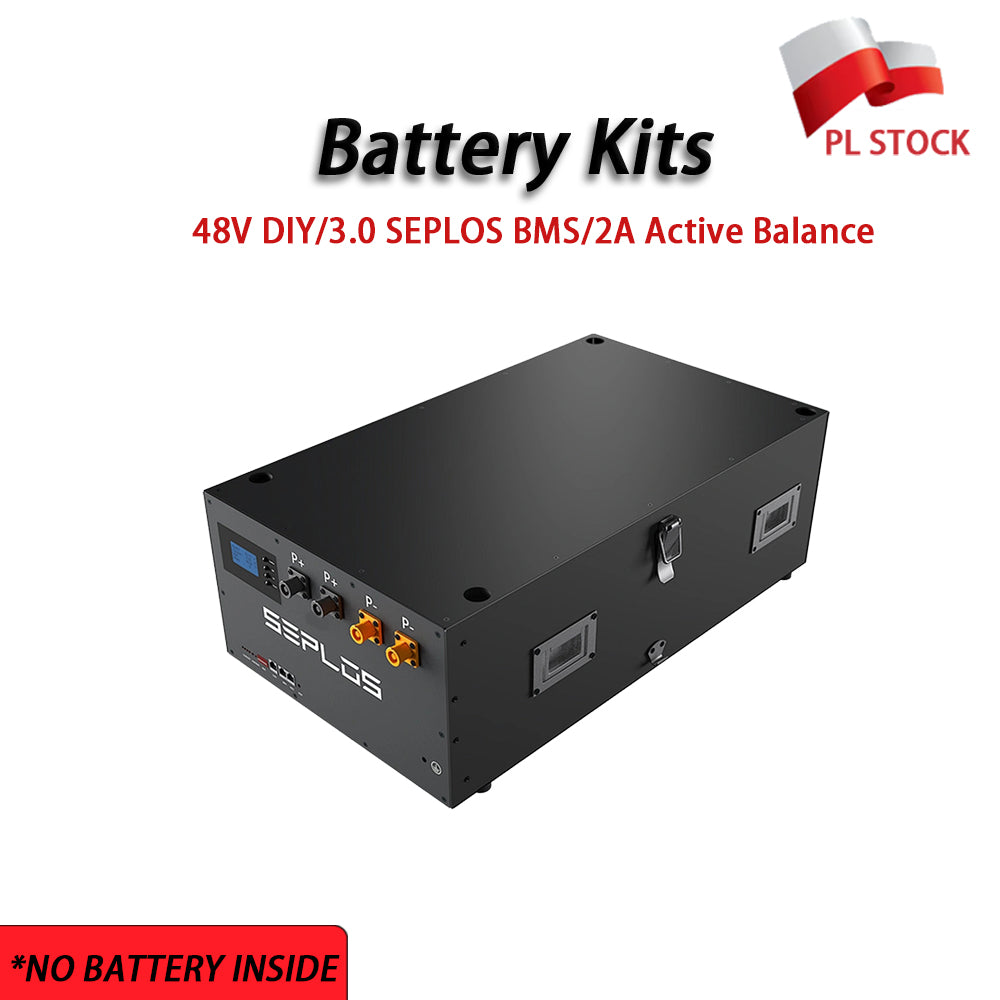

Seplos 3.0 DIY 48V LiFePO4 Battery Pack Kit Stacked Model In EU Stock Built In BMS With Active Balancer

• Nominal Voltage (V): 51.2V
• Nominal Capacity (Ah): 280Ah @0.5C discharge current 25±2℃
• Nominal Power (KWh): 14.3KWh

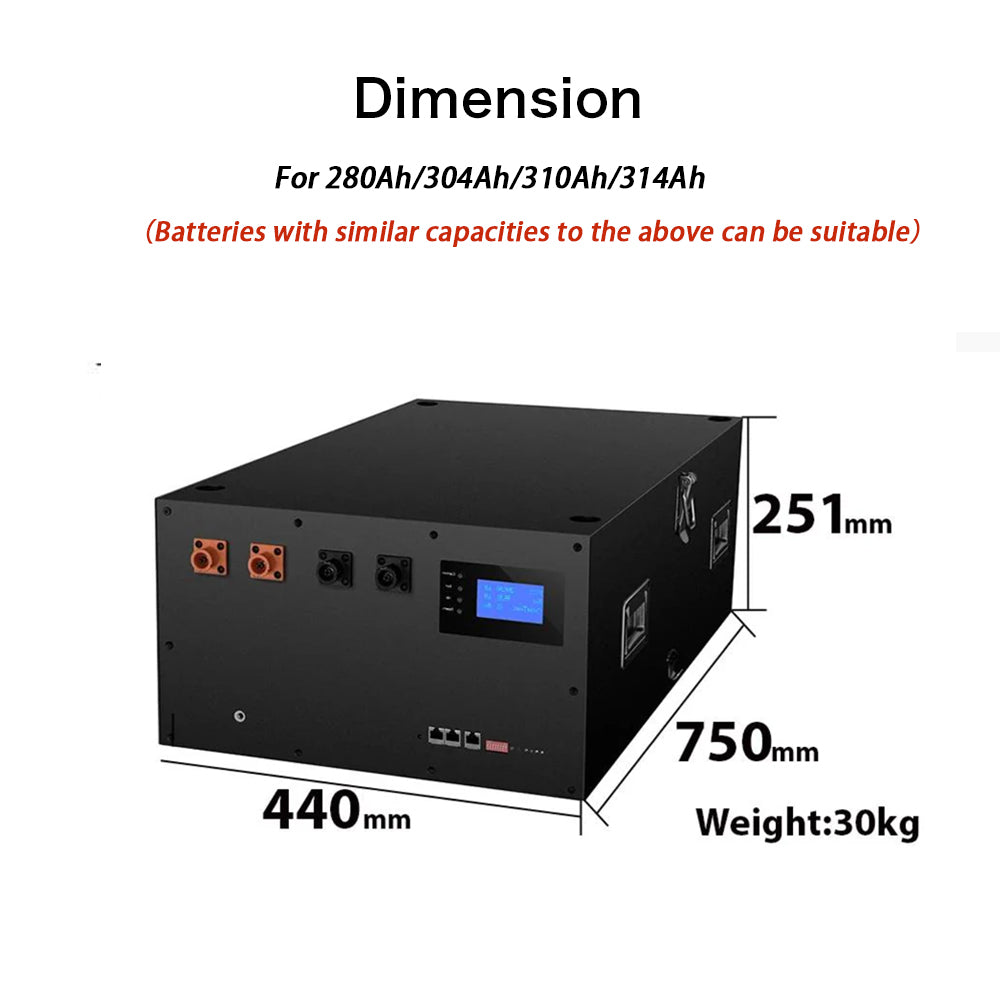

• Dimension (mm): 750*440*251mm
• Weight (Kg): 30KG (without battery )
• Discharge Cut-off Voltage (V): 41.6V
• Charge Voltage (V): 57.6V
• Continuously Charge/Discharge Current (A): 140A @25±2℃ (Recommended)
• Max Standard charge/discharge Current (A): 200A @25±2℃
• Standard charge/discharge Current (A): 140A @25t2℃ (Recommended)
• Max Standard charge/discharge Current (A): 200A @25±2℃
• Working Temperature: -20-55℃
• SOC Range: 5%-100%
• Recommended SOC Range: 15-95%
• Communication Interface: CAN/RS485
• Humidity: 10%-85%
• IP level: IP 20

(If you need the product specification sheet, you can contact us)

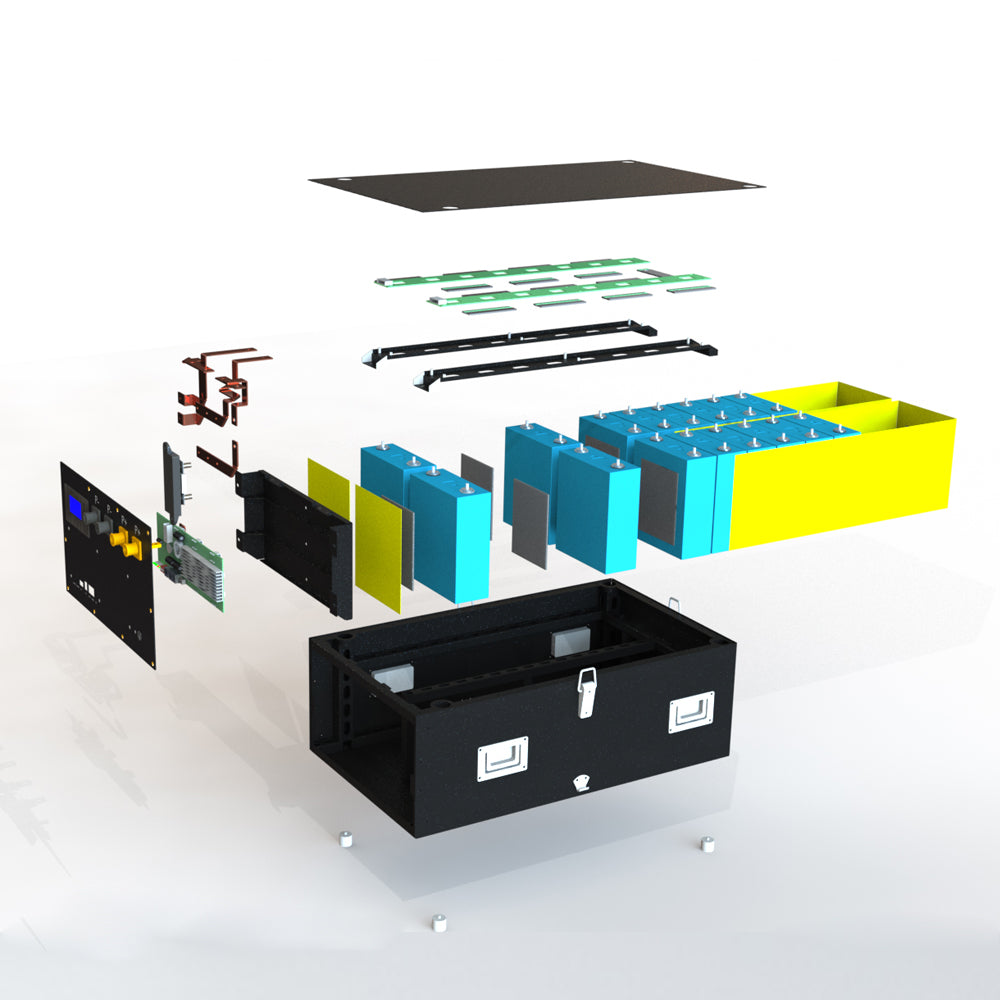

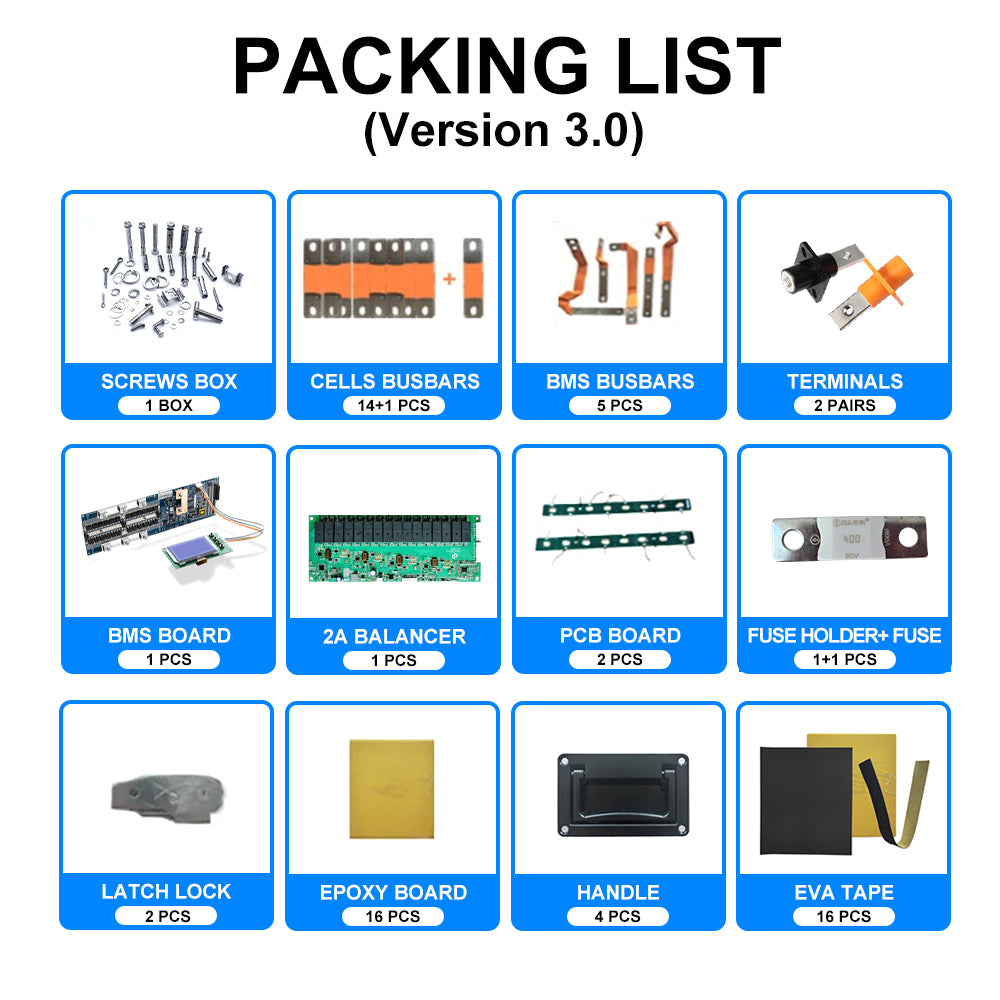

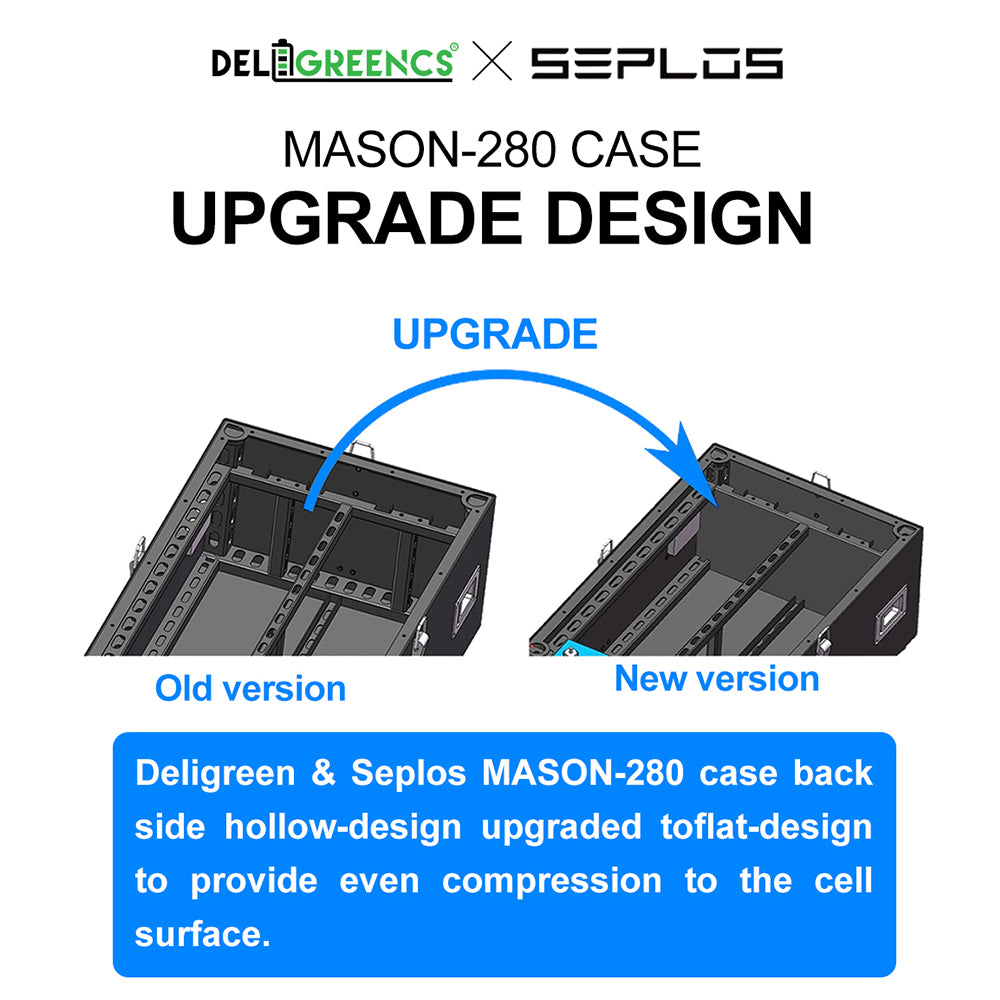

• 1* Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)

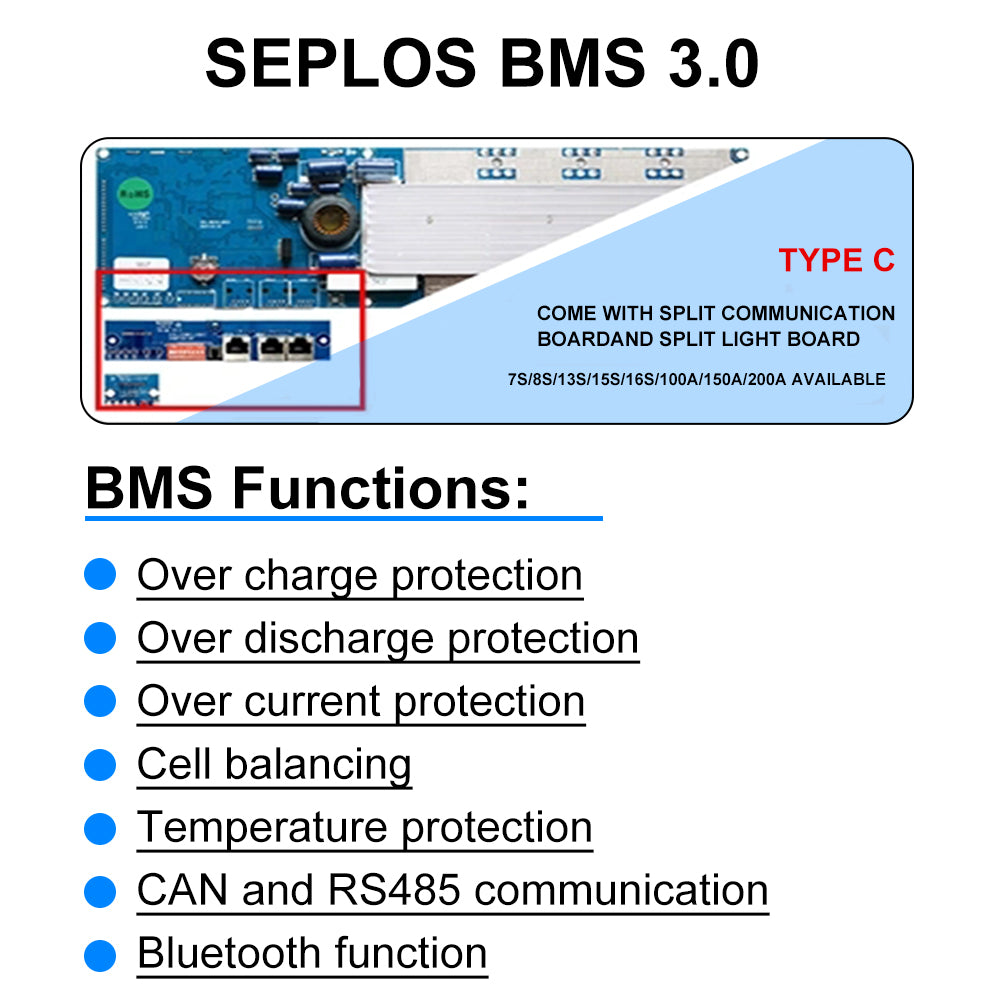

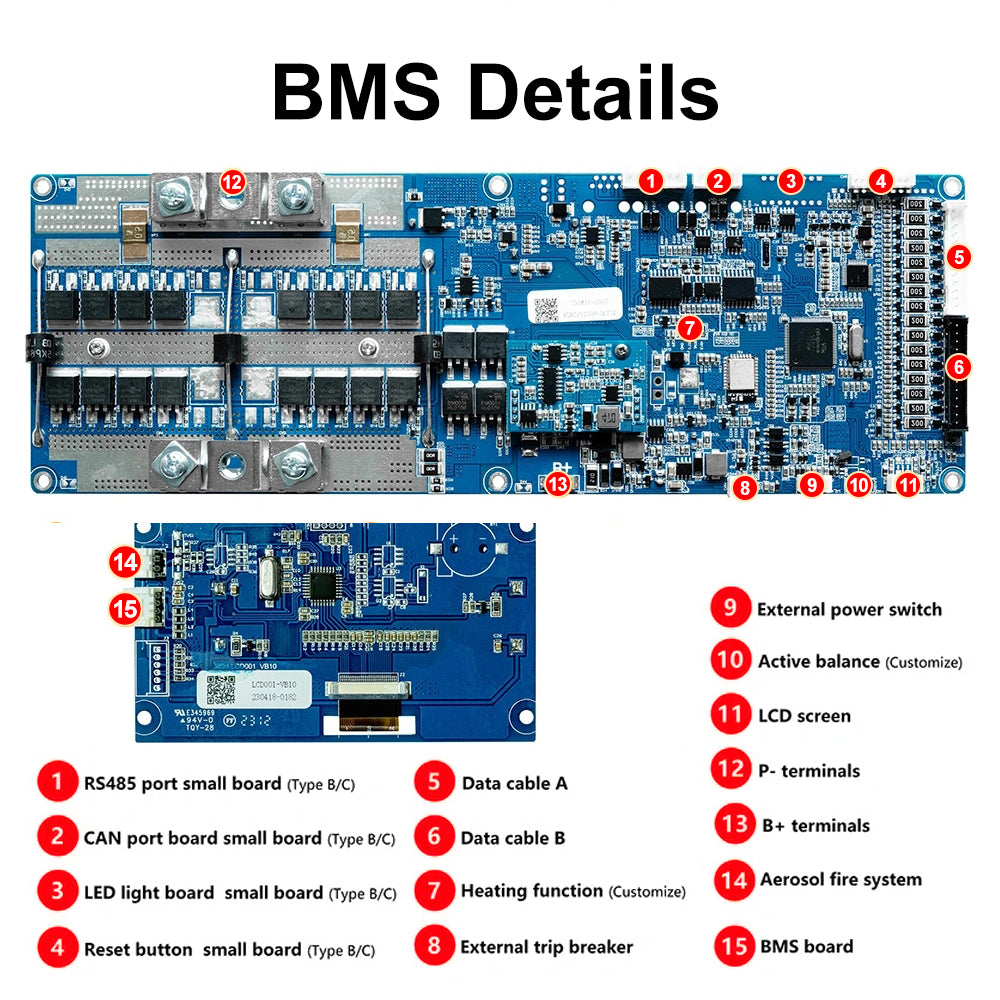

• 1* 48V 200A 16S SEPLOS BMS
• 1* 58V 400A Fuse
• 4*Handle
• 2*PCB Board for BMS and Cell Connection
• 3*Upper and Lower Latch lock
• 1*LCD Screen
• 1*LCD Screen Sticker
• 4*Button Cap
• 3* Wires (LCD Screen wire, PCB board A and PCB board Connector)
• 2* Battery Terminals (P+ Terminal and P- Terminal)

OTHER COMPONENTS INCLUDES

• 6*Copper bus bars (BMS connection)
• 15*Aluminum bus bars (Cell connection)
• 10* Epoxy sheet (Between cell and the case)
• 26*EVA Tape (Between cells)
• 1*PC sheet (Top cover)
• 1*box screws
